What's Included:
Manual Rotation Lift - Anchors for one location, Lifting Hanger, Battery, Hand Control and Cover. Options are added fo the basic package.

What options do I need?
1. First choose the basic package lift with a maximum weight it may have to lift. up to 150kg or up to 200kg.
2. Choose Seating Options
3. Does my Seating Option require anything additional? e.g. Release Adaptor if I want to interchange the Solid Plastic Seat with Sling and / or Wheelchair.
4. Do I want a fully powered unit option? (Yes, if you do not have another person to assist you rotate the lift and you're unable to do it yourself.)
5. Add everything together for your customised lift.

Installation:
Mobile or fixed permanently at the edge of the pool or spa and is easily installed on the pool deck by a handy person / tradesperson. Anchored to pool deck with Stainless Steel anchors and eye bolts.
IMPORTANT: To safely install the Pelican Pool and Spa Lift you will need a solid concrete pad to anchor it to.

Concrete Pad:
It is recommend that approximately 1/3 of cubic metres of concrete is used when pouring your pad. This can be made up as a logical size, for example: 1000 x 1000 x 300 or 650 x 650 x 650. The ideal location is placed up against the pool edge.

Anchoring the lift to the Concrete Pad:
We provide 100mm anchors as standard which have the receiver for the eye bolts. This will secure the 450mm Pelican Pool Hoist base. It’s highly recommended to use a minimum of 20MPa concrete strength.

Earthing:
As per AS3000 of the wiring rules standards – “In certain circumstances” it may be necessary to have all conductive metal objects equally potentially bonded (earthed), this includes Pool Hoists. We recommend you seek the advice and opinion of a qualified electrician. The lift is "earth-ready.

Options:
Lifting Capacity - 150kg or 200kg
Power Options - Up/Down with manual Left and Right or Fully Motorised Up/Down/Left/Right
Anchoring - Mobile or Fixed Permanently

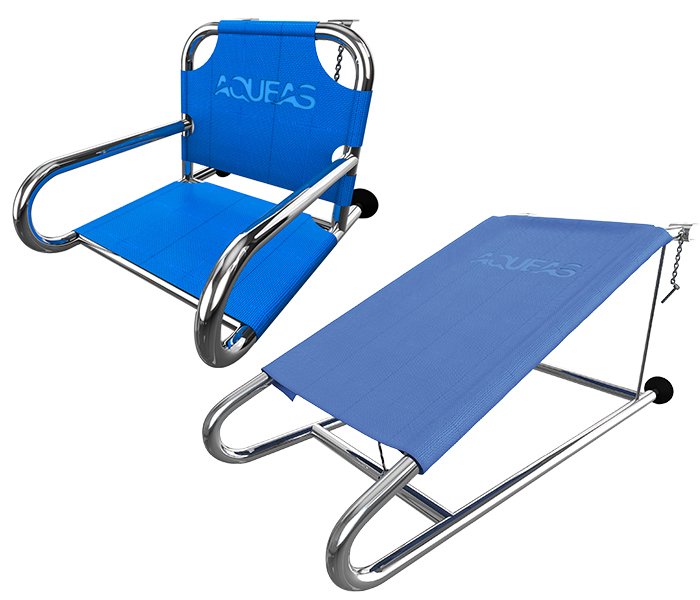

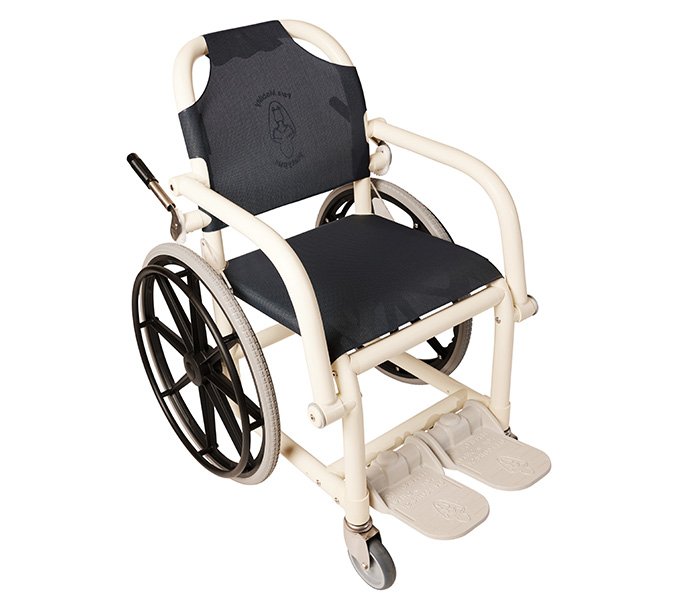

Seating - Fixed Plastic Chair, Sling Harness, Strengthened 150/200 kg Wheelchair or Wheelchair Platform
Spinal Board Attachment

Features:
Easily wheeled from one area to another for multiple use and or storage (Mobile Unit)
No manual lifting required
Press button hand switch operation
Standard lifting capacity 150kg and 200kg
Cover included
Easily installed

Pool & Spa Accessibility
